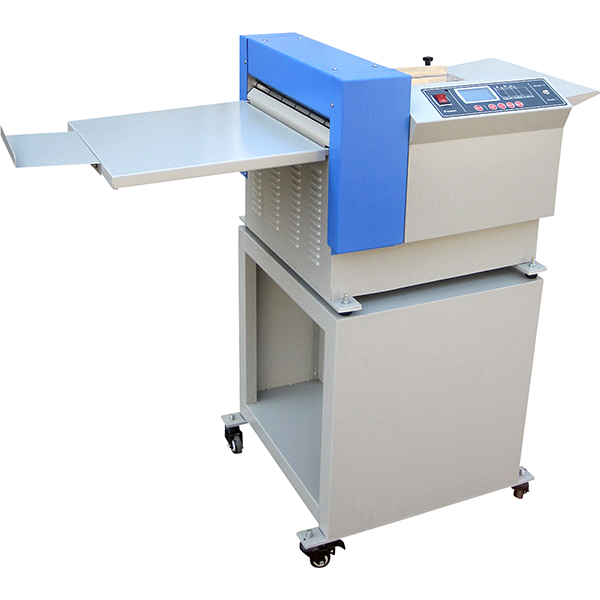

A380数码压痕机SHY-A380

2020-11-19 450

Model 型号

SYH---380A/520

Max working width 最大工作宽度

380mm

Max working length 最大工作长度

Unlimited 无限制

Quantity of mark 压痕数量

1-----15

Thickness of paper 纸张厚度

50------400g

Min distance between marks 两痕最短距离

1mm

Speed (Base on A4 paper) 速度(基于A4纸)

60pcs/min

Power supply 电源

AC220V/50HZ

Rate of power 功率

600W

Machine dimension 机器尺寸

1350x560x1000mm

Net weight 净重

80KG

Packing size 包装尺寸

1140x640x700mm

结构特性:

用于纸张,相片,相册封面压痕

可连续压痕15条,压痕距离,深浅可自行调整,

自动计算压翻书线尺寸,生产效率更高



Structural characteristics:

1. The automatic digital creasing machine is creasing for papers, photos and album covers.

2. It can crease 15 marks continuously at one time. The distance between marks and the depth of marks is adjustable.

3. Autonomic computing for the size of books line, high efficency.
