立式淋膜机FLM-B

2020-11-19 28

Specification 规格

18 inch

24 inch

Max working width 最大淋膜宽度

480mm

630mm

Max working thickness 最大淋膜厚度

5mm

5mm

Max working speed 速度

12m/min

12m/min

Dry way 烘干方式

UV lamp

UV lamp

Power supply 电源

AC220V/50HZ

AC220V/50HZ

Max rate of power 最大功率

2.5KW

4.5KW

Machine dimension 外形尺寸

880x1435x1105mm

1030x1575x1105mm

N/G 净重/毛重

147.5KG/230KG

183KG/243KG

Packing size 包装尺寸

1015x965x1435mm

1200x880x1550mm

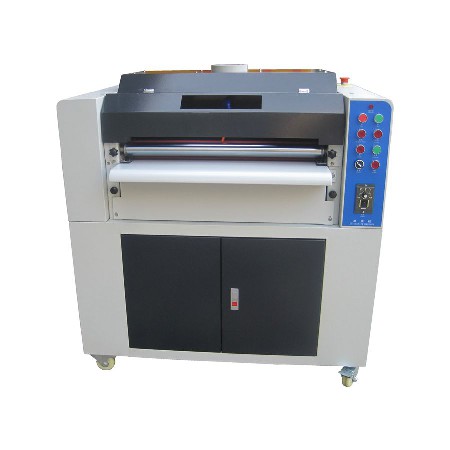

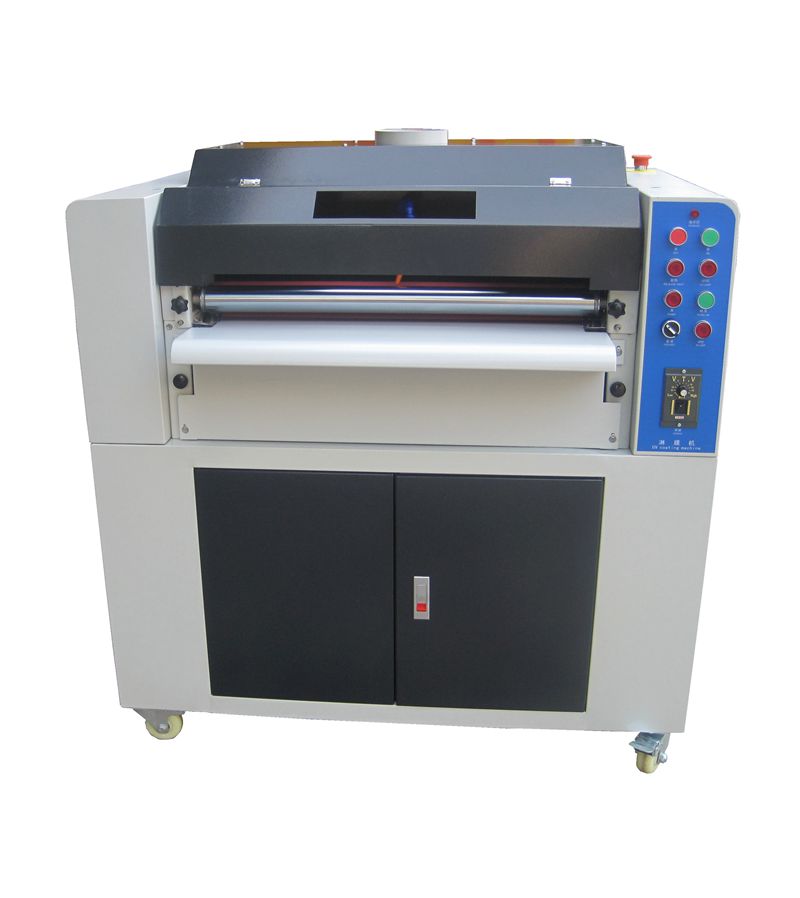

Textured uv coating machine (Model: FLM-B)

Laminating for photos, pictures, papers, etc.

Can transform a variety of patterns.

To facilitate to replace the steel roller with patterns.

Fine workmanship, beautiful shape.

Waterproof, abrasion resistance, scratch-proof after laminating.

Easy to operate, low cost, widely used.

Fast speed and high efficiency.

Plain or textured laminating.



用于照片,画面,纸张的表面处理

可变换多种花纹,更换方便

做工精细,外形美观

淋膜后可耐磨,耐刮

易操作,成本低,用途广

速度快,效率高

普通淋膜和花纹淋膜两用
