气动压痕机YH-A

2020-11-19 7

Model 型号

YH-A

Max working width 最大工作宽度

550mm

Creasing mark thickness 压痕宽度

0.8/1.2/1.5mm

Creasing way 压痕方式

Pneumatic 气动

Machine dimension 外形尺寸

690x640x1100mm

N/G 净重/毛重

37KG/59KG

Packing size 包装尺寸

790x720x550mm

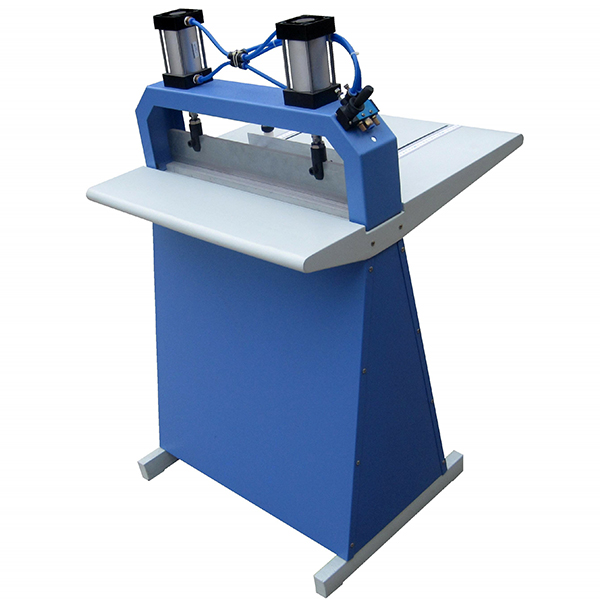

Pneumatic creasing machine (YH-A)

Press marks for the album, paper, carton, etc

More than one mark for paper with different thickness

Cylinder design, the intensity is more uniform, more stable performance

Adjustable pressure, not to hurt the photos

Pressure knife working fine

Operating principle: Pneumatic



用于相册,纸张,纸盒压线

多条痕,用于不同厚度的纸

双缸设计,力度均匀,性能更加稳定

可调节压力,不伤相片

压刀做工精细

工作原理:气动
